Colempaques ceramic candle filter
Read SolutionImplemented by
colempaques
Updated on January 5, 2024
·Created on September 4, 2019

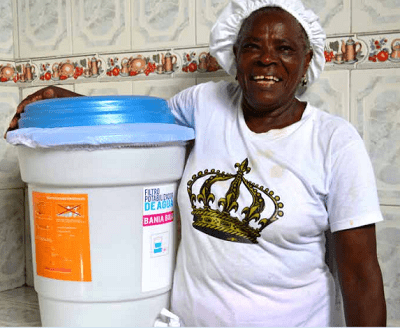

Ceramic Filter UTP is a silver-enhanced clay filter developed in Universidad Tecnológica de Pereira, Colombia.
Filtro Cerámico UTP is a ceramic filter impregnated with colloidal silver developed by the Water and Environmental Sanitation investigation group at Universidad Tecnológica de Pereira (UTP), Pereira, Colombia. It was designed with a research grant from COLCIENCIAS (Colombian Science, technology and Innovation administrative department) to improve water quality for adults and children at the Education Service Units of the ICBF (Colombian Institute for Family Welfare) and successfully implemented with Embera-chami indigenous reservation in the department of Quindio, Colombia in 2014. As of 2019, it is discontinued. All information listed, however, is open source.
The pricing of the filters depends on the quantity ordered. The more filters ordered, the lower the cost per unit.
Target SDGs
SDG 6: Clean Water and Sanitation
SDG 3: Good Health and Well-Being
Market Suggested Retail Price
$244.26
Target Users (Target Impact Group)
Household
Distributors / Implementing Organizations
The Water and Environmental Sanitation investigation group at Universidad Tecnológica de Pereira (UTP). See contact information.
Competitive Landscape
Direct competitors include EcoFiltro.
Countries
Colombia
Manufacturing/Building Method
Filters were designed and manufactured in Pereira from local-produced materials using the "sol-gel" ceramic construction method. Interview with representative. These filters are however, no longer produced nor distributed by the Universidad Tecnológica de Pereira.
Intellectural Property Type
Open-source
User Provision Model
The product can be purchased by contacting the Water and Environmental Sanitation investigation group at Universidad Tecnológica de Pereira (UTP). See contact information.
Distributions to Date Status

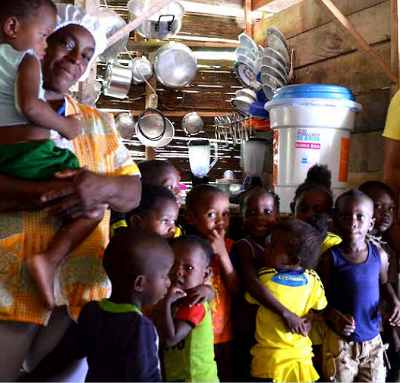

Universidad Tecnológica de Pereira distributed 55 Ceramic filters in the Emberá Chami Indigenous community, located in the Municipality of Mistrató, Risaralda during 2013 and 2014. Overall a total of 100 filters have been distributed. <sup>Interview with representative.</sup>
Type of filter
Ceramic pot filter
Primary material of construction
Filtrating unit is made of clay impregnated with colloidal silver, rest of component are made of plastic.
Additives
Colloidal silver
Manufacturer-specified flow rate (L/hr)
1.5 – 3.0 L/h
Bacteria reduction
4- 5 Log
Virus reduction
Unknown
Protozoa reduction
Unknown
Heavy metals and/or arsenic reduction
Unknown
Maximum recommended influent turbidity level (NTU)
Thi filter has been tested with water with up to 10 NTU
Effluent turbidity levels (NTU)
? 5 NTU. In compliance with Colombian legislated accepted levels
Maintenance schedule
Maintenance should be done periodically (every 2 months) following the products guide.
Manufacturer-specified lifetime volume (L)
The filter has a filtering capacity of 9 L of water at a flow rate of 1.5 L/h for 2 years aproximately. This gives an aproximate lifetime volume of 26300 L.
Safe water storage integration
40 L
Design Specifications

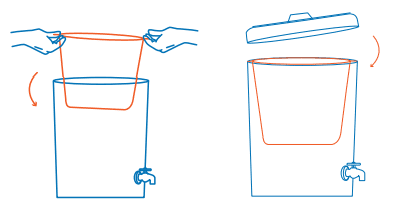

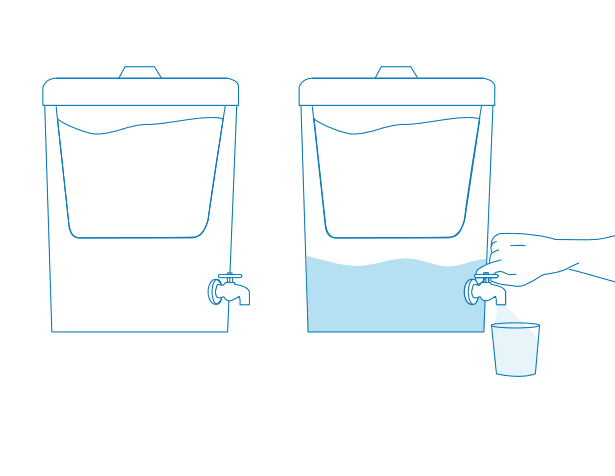

The Ceramic UTP filter is composed of a filtrating unit made of clay impregnated with colloidal silver which has a filtering capacity of 9 L of water at a flow rate of 1.5 L/h. It includes a plastic container with a capacity of 40 L (with a supporting circle and plastic top), a plastic spigot and comes with a plastic brush (for maintenance) and a mesh for filtrating out solids. Its dimensions are 500 x 450 mm and weights 6.5 kg. It removes microbiological contamination and suspended solids and can be used for surface or ground water that does not have sanitary contamination such as heavy metals, pesticides nor special characteristics of harness and alkalinity.
Technical Support
Yes. The Water and Environmental Sanitation investigation group at Universidad Tecnológica de Pereira (UTP) is in charge of installing and providing workshops. See contact information.
Replacement Components
Every 2 years the ICBF Service unit must contact UPT to evaluate the necessity of applying a new coating of colloidal silver or of replacing the filter. The ceramic component of the filter is recommended to be replaced every 3 years. See product guide.
Lifecycle
The lifespan of the Filtro Cerámico UTP is approximately 2 years, depending on periodic maintenance and the cleanness and hygiene where it is installed. There is no indicator of the end of the life of the filter but these are recommended to be changed every 3 years. Distributed filters had a 1-year manufacturers guarantee.
Manufacturer Specified Performance Parameters
This filter was designed to remove microbiological contamination and suspended solids. Designer specific performance targets include: low-cost, simple, easy administration and maintenance, adaptable and replicable to rural and urban contexts, generates changes in behaviors and habits in relation to water, health and well-being.
Vetted Performance Status
Testing performed by the Universidad Tecnológica de Pereira determined these filter remove contamination such as cloudiness, color, total dissolved solids and nitrites to levels accepted by Colombian law levels. The performance does not affect water pH and removes total coliforms and fecal coliforms by 3-4 log, and this is improved by colloidal silver to 4 -5 log. Filters were determined to be economical because production cost is 11 USD, and can produce water for 0.30 USD /m3 .
Safety
Potential hazards include the consumption of unsafe water that can lead to gastrointestinal problems due failure to follow the use and maintenance instructions of the user manual. These directions include warnings against using surface or ground waters that are suspected to have sanitary contamination such as heavy metals, pesticides or special characteristics of harness and alkalinity.
Complementary Technical Systems
No complementary technical systems are required.
Academic Research and References
Lerma-Arias, D. A., 2012, Ceramic Filters, an alternative for safe water (Filtros cerámicos, una alternativa de agua segura), Master Dissertation, Universidad Tecnológica de Pereira, Pereira, Colombia.
Amezquita-Berjan, M. A., 2017, Social ownership of ecotechnologies in vulnerable comunities. Study case ceramic filters for household safe water access (Apropiación Social de Ecotecnologías en Comunidades Vulnerables. Caso de Estudio Filtros Cerámicos para el Acceso al Agua Segura en la Vivienda) Master Dissertation, Universidad Tecnológica de Pereira, Pereira, Colombia.
“Archived Perspective Notice,” Sswm.info, 05-Feb-2018. Available: https://sswm.info/sites/default/files/reference_attachments/UTP%202014.%20Filtro%20cer%C3%A1mico%20UTP.pdf
Goal 6. (n.d.). Sdgs.Un.Org. available: https://sdgs.un.org/goals/goal6
“Goal 3,” Sdgs.un.org. Available: https://sdgs.un.org/goals/goal3
D. Alberto and L. Arias, “FILTROS CERÁMICOS, UNA ALTERNATIVA DE AGUA SEGURA,” Edu.co. Available: https://repositorio.utp.edu.co/server/api/core/bitstreams/4f716ba2-540c-4341-bf43-7e9b4e6a8c9c/content
Universidad Tecnológica de Pereira-UTP, “UTP – Portal Principal,” Edu.co. Available: https://www.utp.edu.co/
Compliance with regulations
Testing performed by the Universidad Tecnológica de Pereira determined that these filters remove cloudiness, color, total dissolved solids and nitrites to levels accepted by Colombian law levels and established under the category of safe water in compliance with Colombian Resolution 2115 of 2007. Interview with representative.
Evaluation methods
This product was tested by the manufacturer for removal of cloudiness, color, total dissolved solids and nitrites and coliform and total coliforms and fecal coliforms.
Other Information
None
