The TFP Composting Toilet
Read SolutionImplemented by
Toilets for People
Updated on December 18, 2023
·Created on August 28, 2017
The Clivus Multrum Composting Toilet System is a dry, composting toilet.
The Clivus Multrum composting toilet systems are dry toilets connected to a composting tank. The faeces are composted without adding water or chemicals and the end product can be used as fertilizer or soil amendment.
The main target regions are Europe and North America but Clivus Multrum distributes globally. The company is present in Austria, Australia, Belgium, Canada, Denmark, Finland, France, Germany, Ireland, Italy, Netherlands, New Zealand, Norway, Russia, Spain, Sweden, South Korea, Switzerland, the United States, and the United Kingdom
Target SDGs
SDG 6: Clean Water and Sanitation
Market Suggested Retail Price
$8,800.00
Target Users (Target Impact Group)
Household
Distributors / Implementing Organizations
Clivus Multrum manufactures and sells the toilets but they can also be bought in retail stores. Examples of organizations implementing the products are the Bronx Zoo in New York, the Arcipelago Foundation in Stockholm archipelago, and along the E6 motorway and DANO-area campsites in Sweden.
Competitive Landscape
Direct competitors include EcoSan/GroSan toilets, Sun-Mar Excel NE Composting Toilet, Ecodry Urine-Diverting Dry Toilet, Separett Villa 9000, and The TFP Composting Toilet.
Regions
Worldwide
Manufacturing/Building Method
Clivus Multrum has manufacturing factories in several countries.
Intellectural Property Type
Patent
User Provision Model
Direct sales from distributors. Installation can be completed by the user or by Clivus Multrum.
Distributions to Date Status
As of 2021, over 20,000 toilets have been sold globally.
Toilet type
Toilet
Evacuation method
Dry
Storage conditions
Container storage
Capacity (L)
650 to 4200 L
Time until emptying
6-7 years
Design Specifications
The user interface is selected by the user with available options and modifications. Toilets are made out of porcelain or glass fiber and are either pedestals or made to be positioned on a bench.

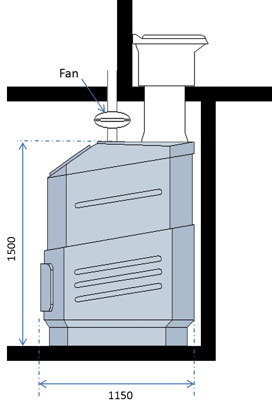

The toilet seat is connected to a polyethylene composting tank with a 6-9 mm wall size. Tank sizes vary from 650 to 4200 liters.

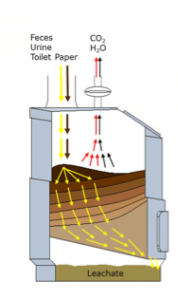

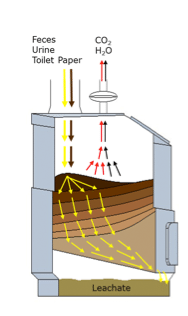

The sewage is stored in the composting tank until it is completely composted. This process takes about 6-7 years depending on the composting environment (micro-organisms, humidity, ventilation, and temperature). The leachate from the urine and liquid components are gathered in an assigned space and can be used as fertilizer.
Technical Support
Clivus Multrum and their subcontractors offer technical support.
Replacement Components
Replacement components can be aquired at Clivus Multrum distributors.
Lifecycle
Tanks are made by recycled and recyclable polyethylene.
Manufacturer Specified Performance Parameters
The manufacturers claim that the composting process reduces volume by 98% in 7 years while eliminating pathogens and producing fertilizer and soil amendment. They also specify that their products are odourless.
Vetted Performance Status
Samples from installation in Sweden were tested for pH, various bacteria (coliform, Escherichia coli, Enterococcus, and Clostridium perfringens), organic matter content, total nitrogen, ammonium, phosphorous, potassium, and magnesium.
Safety
No safety concerns if used and maintained properly.
Complementary Technical Systems
Unknown
Academic Research and References
WCTNZ. Clivus Multrum Toilet Systems. Available: https://www.wctnz.co.nz/producttag/29/clivus-multrum-toilet-systems
Clivus Multrum – Composting Toilets. Available: https://www.clivusmultrum.eu/
Clivus Multrum – Test results. Available: http://www.clivusmultrum.eu/testresults.php
Clivus Multrum – How does Clivus Multrum work?. Available: http://www.clivusmultrum.eu/pdfdocs/BrochureEN.pdf
Clivus Multrum – Bronx Zoo Eco-Restroom. Available: https://clivusmultrum.com/green-building-bronx.php
Clivus Multrum – Reference Projects. Available: http://www.clivusmultrum.eu/referenceprojects.php
Clivus Multrum – Associations. Available: http://www.clivusmultrum.com/associations.php
Clivus Multrum – Toilet Fixtures. Available: http://www.clivusmultrum.eu/toiletfixtures.php
Clivus Multrum – Composting Tanks. Available: http://www.clivusmultrum.eu/compostingtanks.php
Clivus Multrum – Products & Services. Available: http://www.clivusmultrum.com/products-services.php
Clivus Multrum – Accessories. Available: http://www.clivusmultrum.eu/accessories.php
Goal 6. Available: https://sdgs.un.org/goals/goal6
Compliance with regulations
Clivus Multrum composting toilets are certified under the NSF/ANSI Standard 41.
Evaluation methods
Laboratory testing and field testing by Eurofins.
Other Information
Detailed information about the composting process used is found here.
