Multi-Crop Ewing Grinder

Product Description

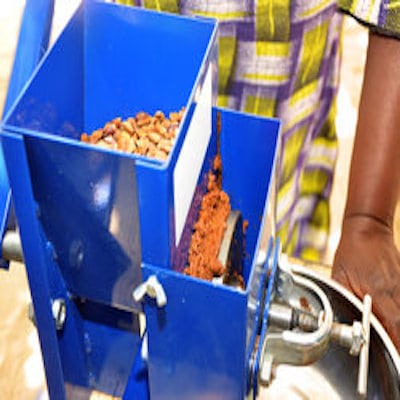

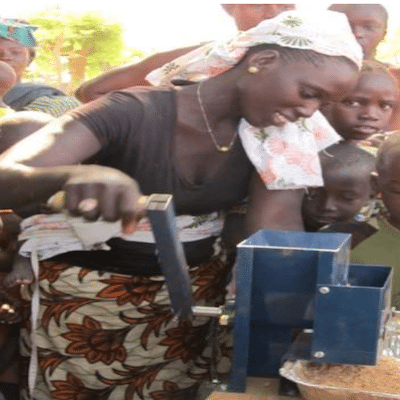

Bountifield International’s Multi-Crop Ewing Grinder is a hand-operated burr mill capable of making flour from grains and creamy paste from nuts. The mill is portable and equipped with heat-treated burrs that do not require sharpening and can withstand long-term wear.

Target SDGs

SDG 2: Zero Hunger

SDG 1: No Poverty

Market Suggested Retail Price

$370.00

Target Users (Target Impact Group)

Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Bountifield International

Manufacturing/Building Method

The grain grinder is mass produced in China using materials including welded metal sheets^{Interview with representative}

Intellectural Property Type

Open-source

User Provision Model

The Multi-Crop Ewing Grinder can be obtained directly from Bountifield International

Distributions to Date Status

More than 300 grinders have been distributed since this particular model was introduced in 2011.

Feedstock types

Nuts and grains

Feedstock rate (kg/hr)

6 – 28

Power source

Both manual and motorized

Energy requirement (W)

N/A

Portable or stationary

Portable

Design Specifications

The Multi-Crop Ewing Grinder has heat-treated burrs that do not require sharpening and can withstand long-term wear. This reduces the need for replacement of components. The grinder is designed with steel housing and burrs with a diameter of 4.5 inches.

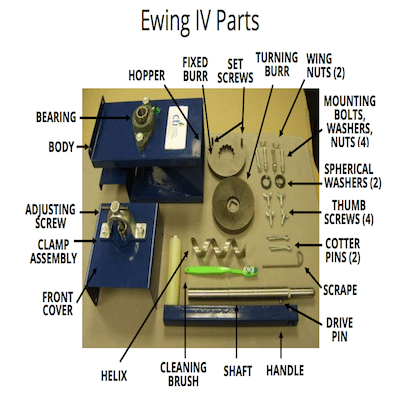

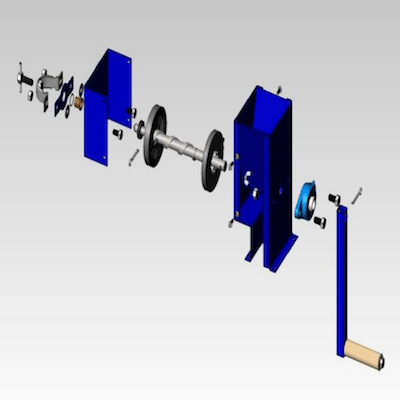

Product Schematics

Technical Support

Upon purchase Bountifield International supplies a grinder manual, grinder training (either in-person or via Skype), and customer support via phone or email

Replacement Components

The grinder' manual contains a list of possible replacement parts that can be substituted for original parts. Users may contact the Bountifield International office for replacement parts.

Lifecycle

5-10 years

Manufacturer Specified Performance Parameters

The Multi-Crop Ewing Grinder is designed to be four times more efficient than traditional grinding methods and it is made to be easy to clean

Vetted Performance Status

Unknown

Safety

There are no known safety hazards linked with the use of this product

Complementary Technical Systems

The motorized version requires electricity to operate

Academic Research and References

Calderón, V. R., Duville, K., Lopez, L., Rooney, L., Bermudez, C., Chacon, Y., and Pinilla, E., 2011, Utilization of Compatible Technology International (CTI) Grinders for Sorghum Flour Production in Central America.

Duville, K. E., 2012, Sorghum flour production manual for compatible technology international (CTI) burr grinders.

Compliance with regulations

None
