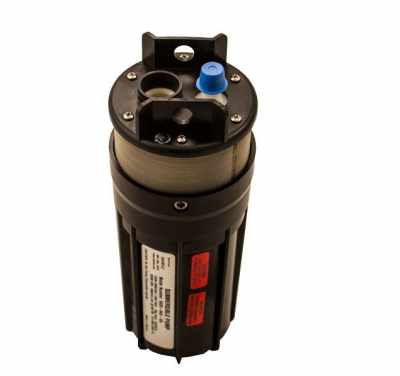

Shurflo 9300 Series Submersible Pump

A solar-powered submersible pump for farmers and communities that need low-flow water systems.

Tested By
  • Shurflo Water Pumps
Content Partners
Unknown

Author

Product Description

The SHURflo 9300 series pump is a submersible pump delivering a steady 82 GPH (1.37 GPM) operation at 230 feet (70.1 m) with 24 VDC and a minimum 155 watt solar array.

Target SDGs

SDG 6: Clean Water and Sanitation

SDG 7: Affordable and Clean Energy

Market Suggested Retail Price

$886.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Regional dealers that stock and provide technical support & service for the 9300 Series Submersible Pump are located worldwide. Pumps can also be purchased on-line through sites like Altestore.com.

Competitive Landscape

Manufacturing/Building Method

Mass produced in the United States and Mexico. Interview with representative

Intellectural Property Type

Patent

User Provision Model

Users can contact the nearby Shurflo dealer or purchase online.

Distributions to Date Status

Unknown

Pump type

Submersible solar pump

Power requirement (W)

120 W

Average flow rate (L/min at specific head)

5.2 L/min at 70.1 m head with 24 VDC and 155 watt minimum solar array

Maximum head (m)

70 m

Diameter (cm)

9.5 cm

Design Specifications

The Shurflo 9300 Series Submersible Pump is a positive displacement, 3 chamber diaphragm DC powered pump. The technical specifications include: • Motor: Permanent Magnet, P/N 11-175-00 Thermally protected • Watts: 120W • Amps: 4.0 Max • Fuse: 7.5 Amp (automotive) • Maximum Lift: 230 ft (70 M) • Maximum Submersion: 100 ft (30 M) The pump incorporates a water-blocked cable connector that is impervious to water leakage and condensation problems preventing waterwicking. Installation and pump schematics from the user manual.

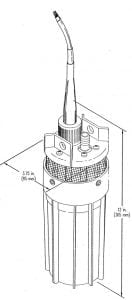

Product Schematics

Technical Support

Owner's manual provides troubleshooting and repair guidance. Technical support is provided through authorized distributors.

Replacement Components

The pump diaphragm should be replaced every two to four years, depending on pumping volume. Replacement part kits are available from authorized dealers.

Lifecycle

The lifecycle depends upon the usage, amp draw, well depth, etc. The Shurflo 9300 comes with a 1 year warranty. Interview with representative

Manufacturer Specified Performance Parameters

The Shurflo 9300 Submersible Pump Series was designed to be "rugged, durable, and built-to last" while operating "efficiently on solar systems". It was also designed to be simple and reliable.

Vetted Performance Status

Tested by manufacturer but not a third-party.

Safety

Unknown

Complementary Technical Systems

Solar array and controller, storage tank. Use of a Linear Current Booster unit is required for optimum performance. Can add a float switch and any necessary cables and piping.

Academic Research and References

Protogeropoulos, C., Pearce, S., 2000, “Laboratory evaluation and system sizing charts for a ‘second generation’ direct PV-powered, low cost submersible solar pump,” Solar Energy, 68(5), pp. 453-474.

Boutelhig, A., Hadjarg, A., Bakelli, Y., 2011, “Comparison Study to Select an Optimum Photovoltaic Pumping System (PVPS) Configuration upon Experimental Performances Data of Two Different DC Pumps Tested at Ghardaïa Site,” Energy Procedia, 6, pp. 769-776.

N. Null, “Professional Water Movement Dealer Locator,” Pentair. Available: https://www.pentair.com/en-us/find-a-dealer/professional-water-movement.html

“Shurflo 9325-043-101 Submersible Pump,” altEstore.com. Available: https://www.altestore.com/store/solar-water-pumps/shurflo-9325-043-101-submersible-pump-p1098/

“Goal 6,” Sdgs.un.org. Available: https://sdgs.un.org/goals/goal6

Altestore.com. Available: https://www.altestore.com/static/datafiles/others/9300_Series_Owners_Manual_911-415.pdf

Thesolarstore.com. Available: https://thesolarstore.com/manuals/9300usermanual.pdf#page=6

A. Store, “SHURflo 9325 Submersible Solar pump overview,” 26-Oct-2015. Available: https://www.youtube.com/watch?v=Vgagz5COXbM

Pdx.edu. Available: https://web.pdx.edu/~rueterj/courses/ESM342-solar/GE-PSU



Compliance with regulations

ISO 9001:2008 is a quality assurance standard used at the Shurflo factory. Interview with representative

Evaluation methods

Unknown

Other Information

Green Empowerment Solar Pumping Systems (SPS) Introductory and Feasibility Guide   Video that describes the Shurflo 9235 pump
