SunCulture SP-300 Solar Pumping System

Product Description

SunCulture’s SP-300 Solar Pumping System is designed to pull water from any water source (lake, river, stream, well, borehole, water harvester, etc.) using solar power. The solar panels provide the pump’s electricity directly without the need for batteries or inverters. Water is pumped into a raised water storage tank during the day. Farmers can either purchase this pump separately or as a package with SunCulture’s Drip Irrigation Kit.

This product has been discontinued and was replaced by SunCulture’s RainMaker 2 in 2019.

Target SDGs

SDG 2: Zero Hunger

SDG 7: Affordable and Clean Energy

Market Suggested Retail Price

$1,496.00

Market Suggested Retail Price (Secondary Currency)

159,000

Target Users (Target Impact Group)

Household, Community

Distributors / Implementing Organizations

SunCulture

Competitive Landscape

Direct competitors include Grundfos Solar Surface Pump, Lorentz PS600 CS-F, and Futurepump SF1 Solar Pump.

Regions

East Africa

Countries

Kenya

Manufacturing/Building Method

Components are sourced directly from manufacturers in the U.S., Asia, and Europe. SunCulture will assemble the system for an additional cost.

Intellectural Property Type

Select Type

User Provision Model

Users can obtain this product directly from SunCulture. SunCulture offers a free quote to farmers who submit their information online, and also have a technician available to visit customer sites that require consultation for a customized system. SunCulture partners with Equity Bank to provide financing options to farmers who cannot to pay for the system upfront.

Distributions to Date Status

SunCulture has over 650 customers in East Africa.Interview with representative

Pump type

Solar submersible pump

Irrigation capacity (acre)

2.5 acres

Maximum flow rate (L/min)

26 L/min

Maximum lift/head (m)

80 m

Required pressure (MPa)

0.78 Mpa

Maximum distance from water source (m)

80 m

Power source

Solar

Power requirement: Max power (W)

300 W

Power requirement: Max motor current (A)

5.56 A

Power requirement: Voltage range (V)

54 V

Design Specifications

The Solar pump system includes the following a DC submersible solar pump with controller and float switch, solar panels, a 12 ft security stand for the panels, an electrical cable, and an HDPE pipe.

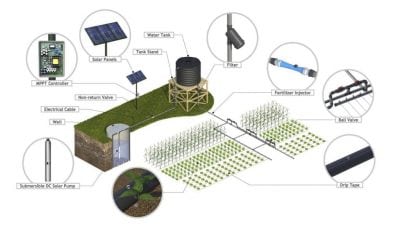

Product Schematics

Technical Support

SunCulture provides training and after-sales support upon request.

Replacement Components

An entire after sales process is dedicated to supporting customers with needed replacement parts, as well as system repairs if necessary.^{Interview with representative}

Lifecycle

This product has a 1 year warranty.

Manufacturer Specified Performance Parameters

The manufacturer specifies their system can pump 12,500 L of water per day.

Vetted Performance Status

Unknown

Safety

No known safety hazards are related to this product.

Complementary Technical Systems

The system is capable of being used together with SunCulture's Drip Irrigation Kit.

Academic Research and References

Merrey, D. J. and Langan, S., 2014, Review Paper on ‘Garden Kits’ in Africa: Lessons Learned and the Potential of Improved Water Management, IWMI Working Paper No. 162.

Michaelowa, A., Köhler, M., Friedmann, V., Tkacik, J., and Dransfeld, B., 2016, IMPAQT Case Study.

Compliance with regulations

Unknown
